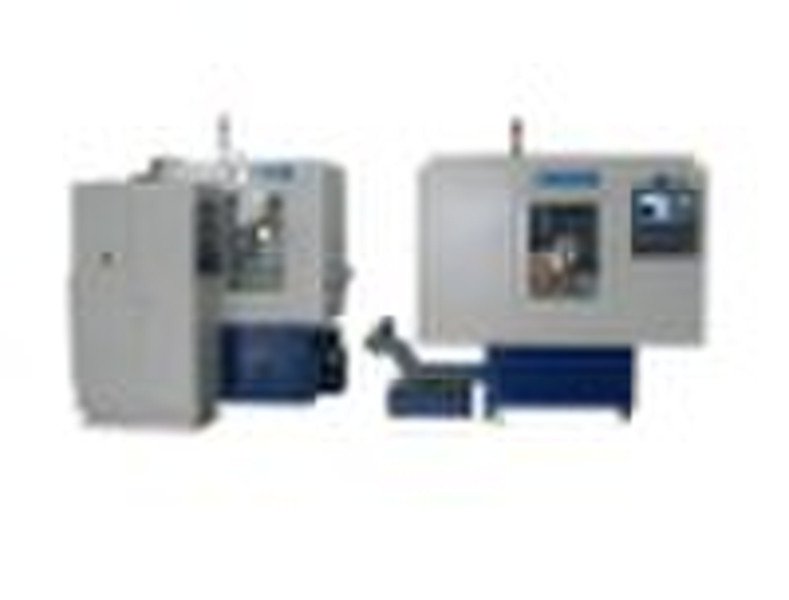

machine tool
yinhua chen
Contact person
Basic Information
Main Technical specifications 1. Max workpiece diameter 100mm 2. Max cutting gear length 150mm 3. Workpiece mount length 370mm 4. Max module 2mm 5. No.of teeth 3-400teeth 6. Max diameter of hob Φ60mm 7. Max diameter of hob arbours Φ13,Φ16,Φ22mm 8. Max hob shift length 60mm 9. Hob spindle speed 0-3000r/min 10. Workpiece maximum speed 1000r/min 11. Axial rapid feed rate 4400mm/min 12. Axial cutting feed rate 0.1-500mm/min 13. Rapid feed rate 5000mm/min 14. Cutting infeed tate 0.1-500mm/min 15. Hob head swivel angle ±45°C 16. Total power consumption 15kw 17. Overal dimensions(L*W*H)2210*1730*1950(mm) 18. Net weight 3000kg
Delivery terms and packaging
Packaging Detail: Wooden box Delivery Detail: Three month
Port: Shanghai
